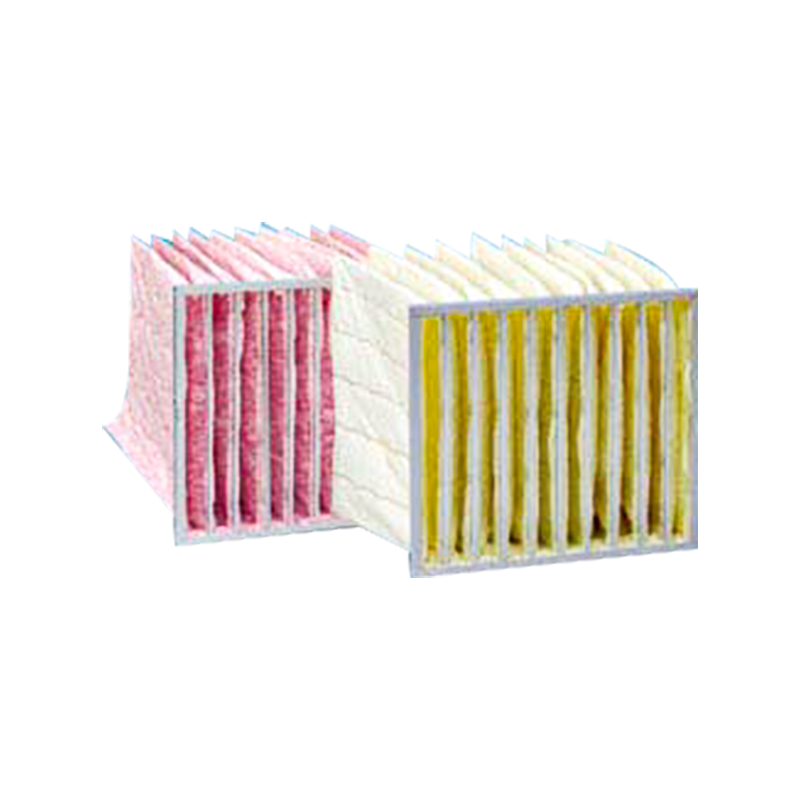

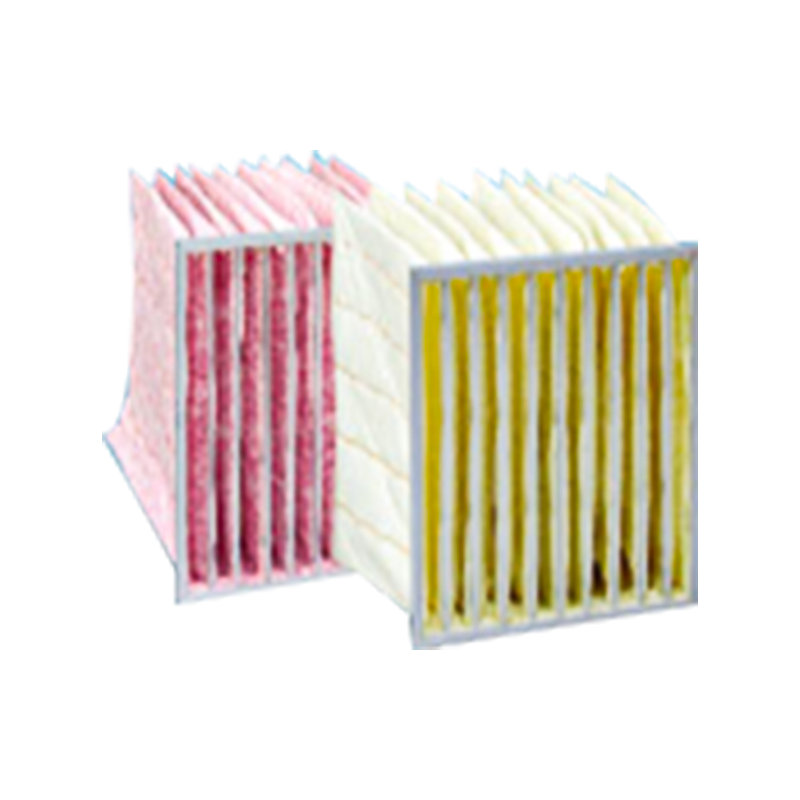

F7/F8 Medium Efficiency Bag Air Filter

Our company specializes in selling F7/F8 medium efficiency bag air filters, with high-quality galvanized or aluminum alloy frames for the outer frame. The filter material of F7/F8 medium efficiency bag air filter is glass fiber, non-woven fabric, and adopts ultrasonic stitching technology, internal drawing technology, etc. The F7/F8 medium efficiency bag air filters we provide are produced using materials that comply with international standards. Suitable for intermediate filtration in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, and automobiles.

PREV：F5/F6 Medium Efficiency Bag Air Filter NEXT：Ultra Low Resistance, No Partition, High-Efficiency Air Filter

Material selection

The outer frame is made of high-quality galvanized steel plate or aluminum profile, and the filter material is made of extremely fine glass fiber or synthetic fiber, which can be customized according to customer requirements.

Product features:

1. Large dust holding capacity.

2. Low resistance and high air volume.

3. The product is easy to install.

4. Suitable for intermediate filtration in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, and air conditioning and ventilation systems.

5. The filter material is made of extremely fine glass fiber.

6. The average efficiency of the filter material is 85% (F7) and 95%.

Model size and other parameters:

Model	Dimensions (WHD)	Rated air volume	Initial resistance	Efficiency (level)	Number of bags
ZDSF7/8-13	495295600mm	1300m³/h	110Pa	80-85% F7 colorimetric method 90-95% F8 colorimetric method	8
ZDSF7/8-22	495495600mm	2200m³/h			8
ZDSF7/8-16	595295600mm	1600m³/h			10
ZDSF7/8-27	595495600mm	2700m³/h			10
ZDSF7/8-32	595595600mm	3200m³/h			10
