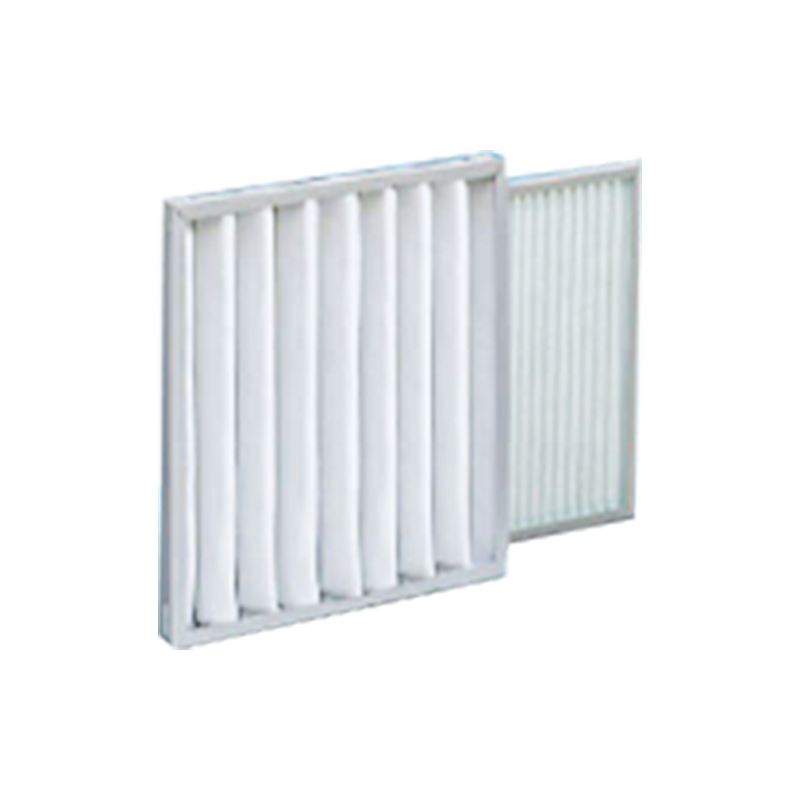

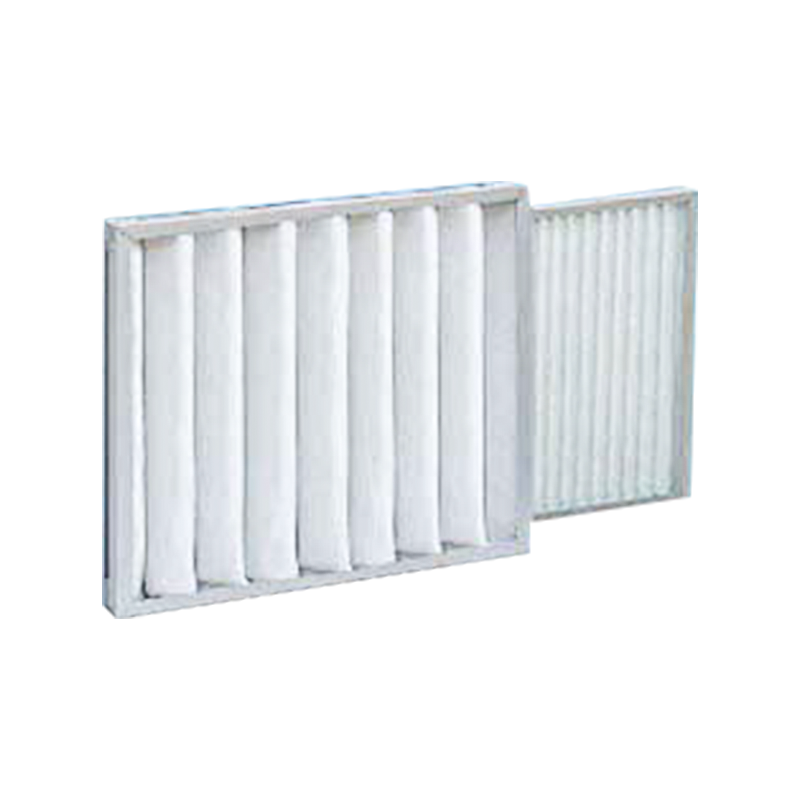

Folding Plate Primary Air Filter

Our company specializes in selling folded plate primary air filters, with high-quality galvanized steel plates or aluminum profiles as the outer frame. The filtering material of the folded plate primary air filter can be synthetic fiber or glass fiber, and customized specifications can be selected according to customer requirements. His advantage lies in durability and the ability to be reused multiple times. Mainly used for primary filtration in central air conditioning.

PREV：Flat Type Primary Air Filter NEXT：F9 Medium Efficiency Bag Air Filter

Material selection

The outer frame is made of high-quality galvanized steel plate or aluminum profile, and customized specifications can be selected according to customer requirements.

Product features:
1. Can be cleaned and reused multiple times, with a long service life and high economy.
2. Low resistance and high air volume.
3. Easy product replacement.
4. Mainly filters large particles of dust, suitable for pre filtration of ordinary fresh air vents and primary filtration of air conditioning systems.

Model size and other parameters：

Model	Specifications	Rated air volume	Initial resistance	Efficiency	Level
ZG1-8Z	595×595×25mm	800m³/h	24Pa	50% weight method	G1
ZG1-13Z	495×295×25mm	1300m³/h
ZG1-22Z	495×495×25mm	2200m³/h
ZG1-6Z	595×295×25mm	1600m³/h
ZG1-27Z	595×495×25mm	2700m³/h
ZG1-32Z	595×595×25mm	3200m³/h
