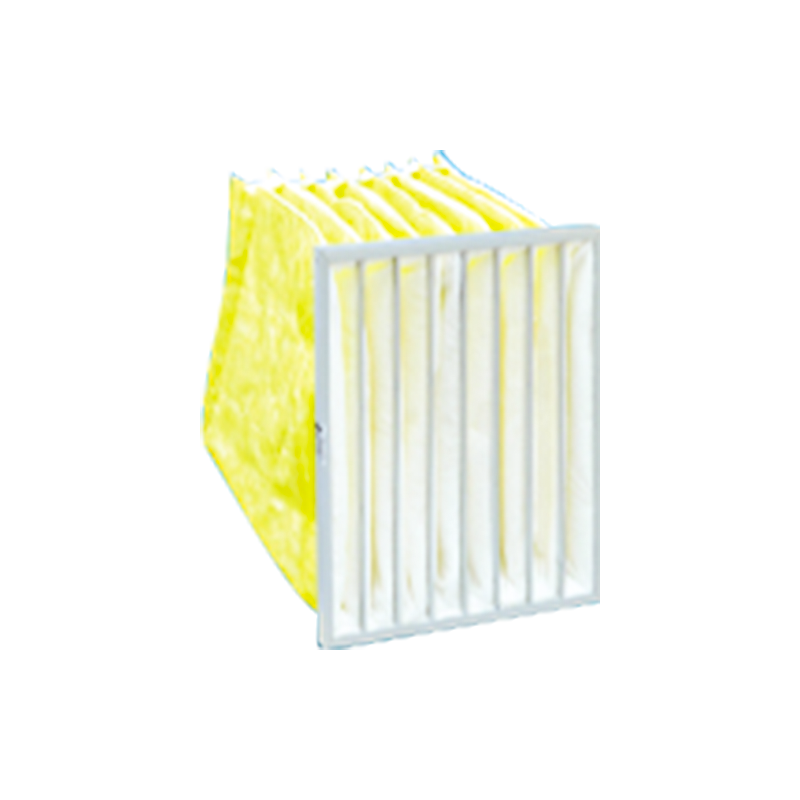

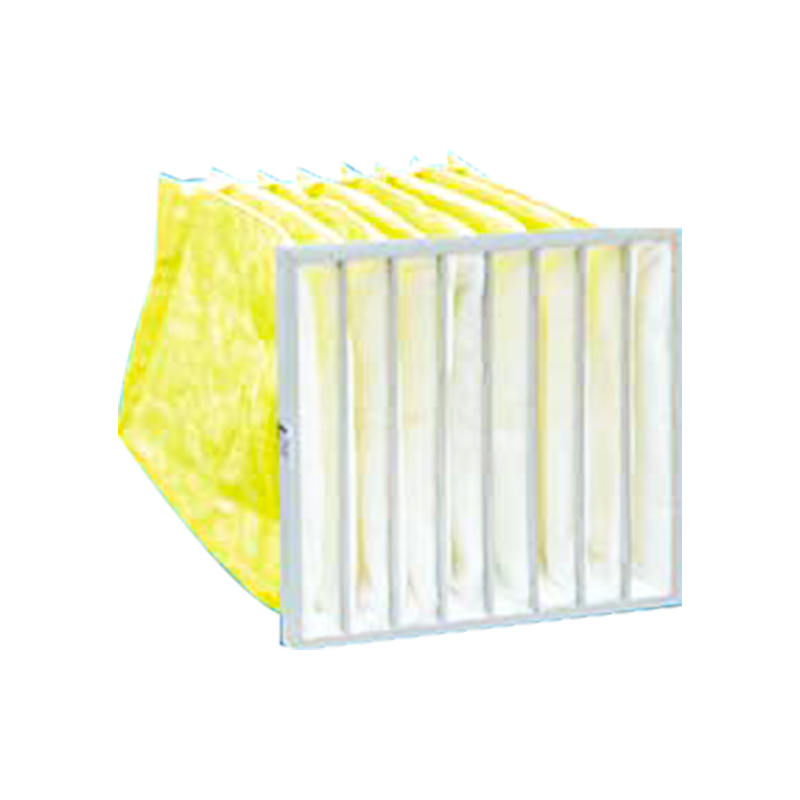

F9 Medium Efficiency Bag Air Filter

Our company specializes in selling F9 medium efficiency bag air filters, with high-quality galvanized or aluminum alloy frames for the outer frame. The filter material of F9 medium efficiency bag air filter is fiberglass and non-woven fabric. Adopting ultrasonic stitching technology, internal drawing technology, etc. The F9 medium efficiency bag air filter we provide is produced using materials that comply with international standards. Suitable for intermediate filtration in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, and automobiles.

Contact Us
PREV：Folding Plate Primary Air FilterNEXT：Medium Efficiency Air Filter with Partition
Material selection

The outer frame is made of high-quality galvanized steel plate or aluminum profile, and can be customized according to customer requirements. The filter material is made of extremely fine glass fiber.

Product features:
1. Large dust holding capacity.
2. Low resistance and high air volume.
3. The product is easy to install.
4. The colors are light yellow and white.
5. Suitable for intermediate filtration in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, automobiles, and air conditioning and ventilation systems.


Model size and other parameters:

Model Dimensions
(mm)		 RRated air volume
(m³/h)		 Initial Resistance
(Pa)		 Efficiency (level) Number of bags
ZDSF9-13-1 495×295×60mm
20"×12"×24"		 1300m³/h 120Pa 98% F9
(colorimetric)		 4
ZDSF9-22-1 495×495×600mm
20"×20"×24"		 2200m³/h 120Pa 98% F9
(colorimetric)		 4
ZDSF9-16-1 595×295×600mm
24"×12"×24"		 1600m³/h 120Pa 98% F9
(colorimetric)		 6
ZDSF9-27-1 595×495×600mm
24"×20"×24"		 2700m³/h 120Pa 98% F9
(colorimetric)		 8
ZDSF -32-1 595×595×600mm
24"×24"×24"		 3200m³/h 120Pa 98% F9
(colorimetric)		 10
