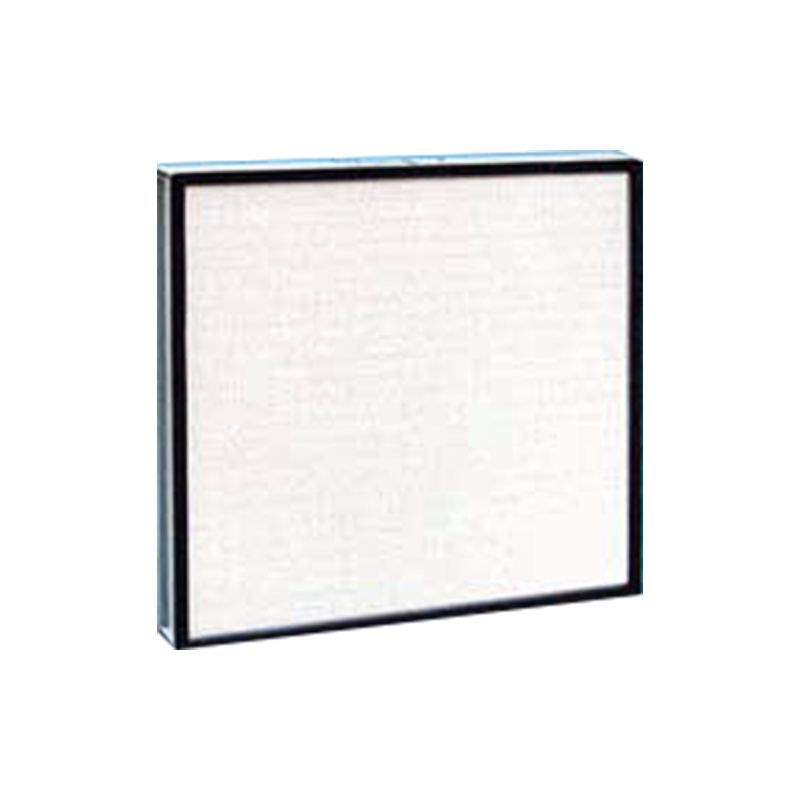

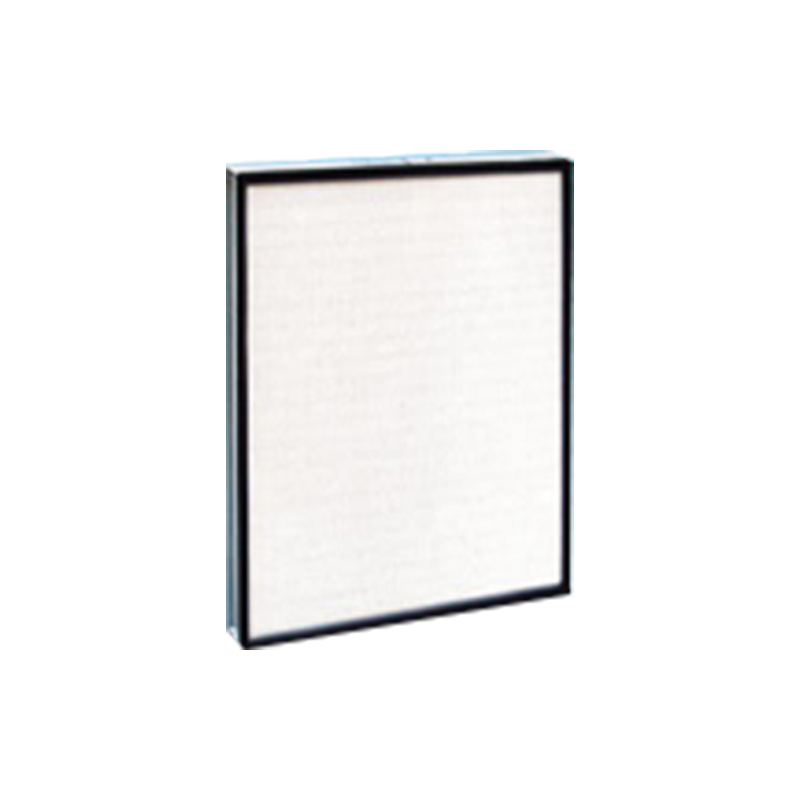

Ultra Low Resistance, No Partition, High-Efficiency Air Filter

Our company specializes in selling ultra-low resistance non partition air filters, with high-quality aluminum profiles as the outer frame. The filtering material of ultra-low resistance non partition air filters is imported glass fiber. The ultra-low resistance non partition air filters we provide are all produced using ultra-low resistance materials that meet international standards. Customized specifications can be selected according to customer requirements. They are mainly suitable for ultra LSI manufacturing factories, semiconductor manufacturing factories, atomic force research centers, clean rooms, laminar flow equipment, workbenches and other occasions that require ultra-low resistance cleanliness.

Material selection

The outer frame is made of high-quality aluminum profiles, and the filter material is made of extremely fine glass fiber.

Product features:
1. Large dust holding capacity.
2. Low resistance, low pressure loss, thin thickness, and light weight.
3. The product is easy to install.
4. Surface wind speed above 0.95m/s and resistance below 160Pa.
5. Suitable for ultra high cleanliness applications such as ultra LSI manufacturing factories, semiconductor manufacturing factories, atomic force research centers, clean rooms, laminar flow equipment, workbenches, etc.


Composition materials and operating conditions:

Frame material Aluminum profiles
Seals Polyurethane glue
Separators Hot melt adhesives
Filter media Fiberglass filter paper
Use the highest temperature 80℃
Use the highest humidity 100%
Seals Ethyl acetate

Model size and other parameters:

Model Dimensions
(mm)
Rated air volume
(m³/h)
Dust holding capacity
(g)
Surface wind speed
(m/s)
Initial Resistance
(Pa)
Final Resistance
(Pa)
Efficiency
(0.3μm)
Weight
(Kg)
ZWGC-7SA-E 610×610×50 700  450  0.52  ≤160 400  ≥99.99 ≈3
ZWGC-11SA-E 915×610×50 1100  700  0.52  ≤160 400  ≥99.99 ≈4.5
ZWGC-10MA-E 610×610×69 1000  650  0.75  ≤160 400  ≥99.99 ≈3.8
ZWGC-15MA-E 915×610×69 1500  950  0.75  ≤160 400  ≥99.99 ≈6
ZWGC-13LA-E 610×610×90 1300  800  0.97  ≤160 400  ≥99.99 ≈5
ZWGC-19LA-E 915×610×90 1900  1200  0.97  ≤160 400  ≥99.99 ≈7.5
ZWGC-26LA-E 1220×610×90 2600  1600  0.97  ≤160 400  ≥99.99 ≈10
ZWGC-26YA-E 1220×610×100* 2600  1600  0.97  ≤160 400  ≥99.99 ≈11

*Depth 100 is the liquid tank sealing filter
