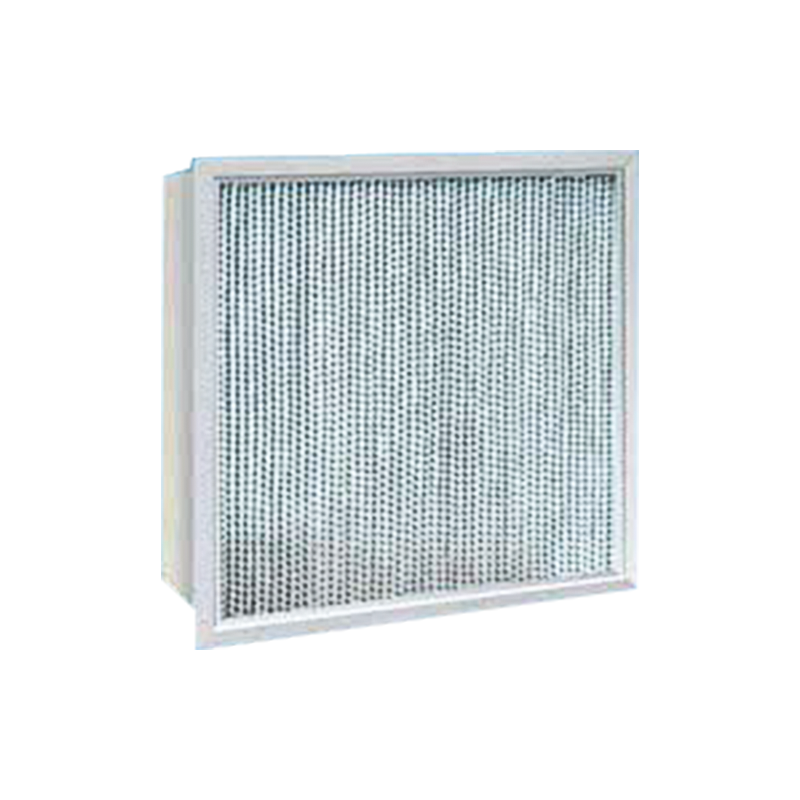

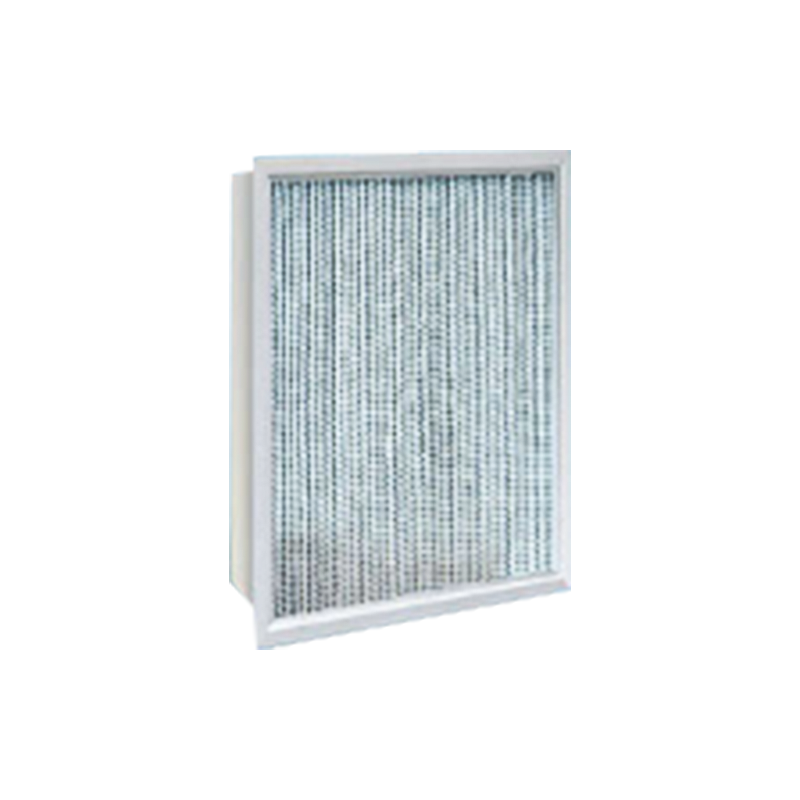

Medium Efficiency Air Filter with Partition

Our company specializes in selling partition medium efficiency air filters, with high-quality galvanized or aluminum alloy frames as the outer frame. The filter material for partition medium efficiency air filters is glass fiber and synthetic fiber. The partitioned medium efficiency air filter we provide is produced using materials that comply with international standards. Suitable for intermediate filtration in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, and automobiles.

Contact Us
PREV：F9 Medium Efficiency Bag Air FilterNEXT：Combination Type Medium Efficiency Air Filter
Material selection

The outer frame is made of high-quality galvanized steel plate or aluminum profile, with partitions that can be divided into aluminum foil partitions and paper partitions. Materials can be customized according to customer requirements.

Product features:
1. Large dust holding capacity.
2. Low resistance, high air volume, with an air volume of up to 3000m³/h.
3. The product is easy to replace.
4. Suitable for intermediate filtration in the pharmaceutical, electronics, food industries, and air conditioning and ventilation systems.


Composition materials and operating conditions:

Frame material Galvanized sheet
Seals Fiberglass cotton
Separators aluminum foil
Filter media Fiberglass filter paper
Use the highest temperature 80℃
Use the highest humidity 80%


Model size and other parameters:

Model Dimensions
(mm)		 Rated air volume(m³/h) Initial Force
(Pa)		 Efficiency (colorimetric)
(%)
ZGB-7.3L 295×295×295 730  ≤125 85
ZGB-15L 295×592×295 1500  ≤125 85
ZGB-21L 495×495×295 2100  ≤125 85
ZGB-30L 592×592×295 3000  ≤125 85
