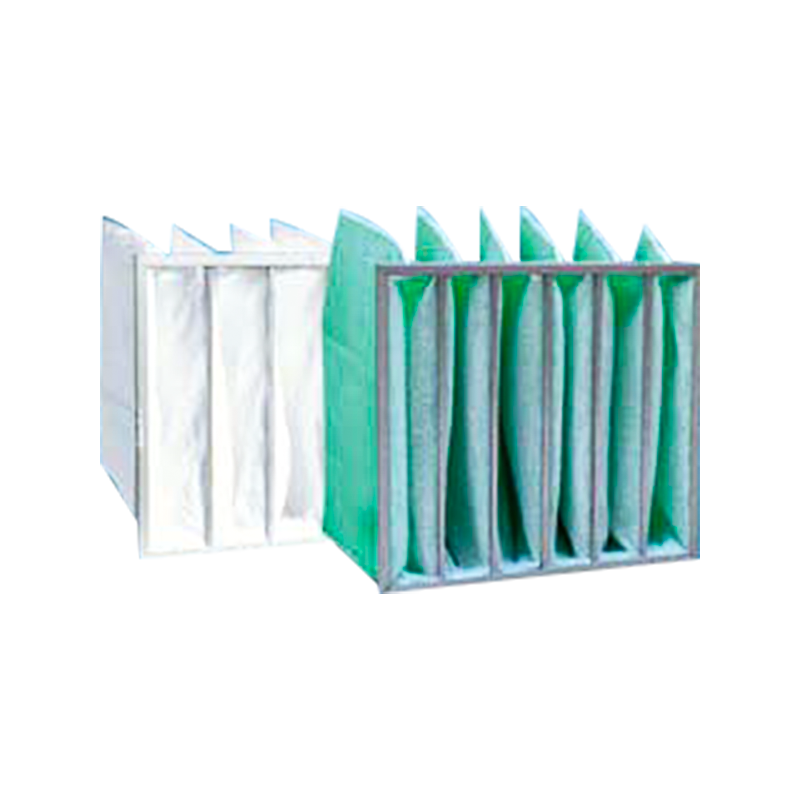

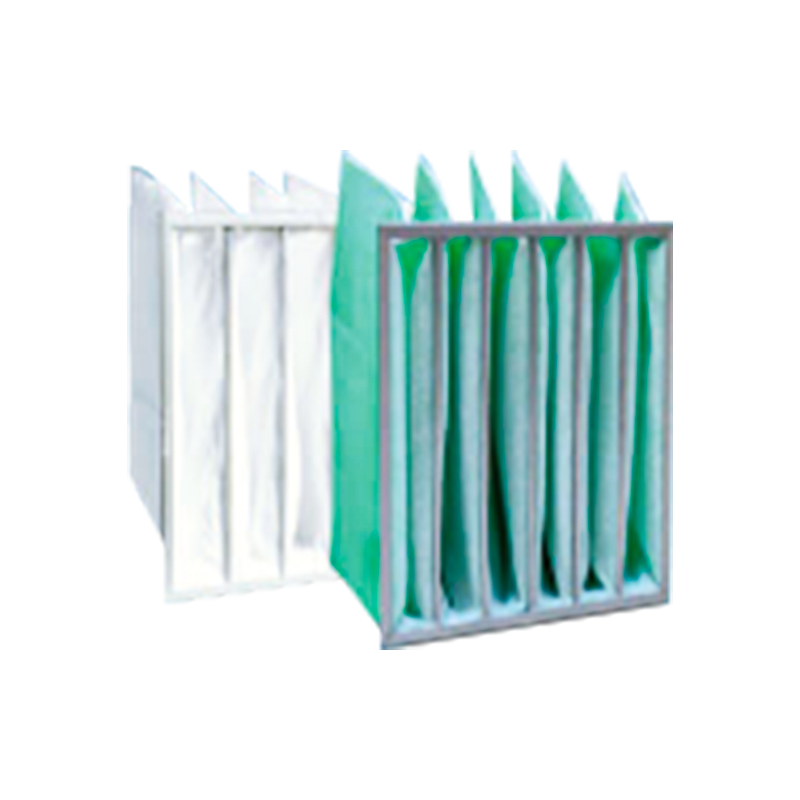

F5/F6 Medium Efficiency Bag Air Filter

Our company specializes in selling F5/F6 medium efficiency bag air filters, with high-quality galvanized or aluminum alloy frames for the outer frame. The filtering material of the F5/F6 medium efficiency bag air filter is glass fiber and non-woven fabric, using ultrasonic stitching technology, internal drawing technology, etc. The F5/F6 medium efficiency bag air filters we provide are produced using materials that comply with international standards. Suitable for intermediate filtration in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, and automobiles.

Material selection:

The outer frame is made of high-quality galvanized steel plate or aluminum profile, and customized specifications can be selected according to customer requirements.

Product features:
1. Large dust holding capacity.
2. Low resistance and high air volume.
3. The product is easy to install.
4. Suitable for intermediate filtration in industries such as pharmaceuticals, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, and air conditioning and ventilation systems.


Model size and other parameters:

Model Dimensions
(W*H*D)
Rated air volume Initial resistance Efficiency
(level)
Number of bags
ZDF5/6-13 495*295*600mm 1300m3/h 50Pa 40-50% F5
colorimetric method

60-70% F6
colorimetric method
5
ZDSF5/6-22 495*495*600mm 2200m3/h 5
ZDSF5/6-16 595*295*600mm 1600m3/h 6
ZDSF5/6-27 595*495*600mm 2700m3/h 6
ZDSF5/6-32 595*595*600mm 3200m3/h 6
