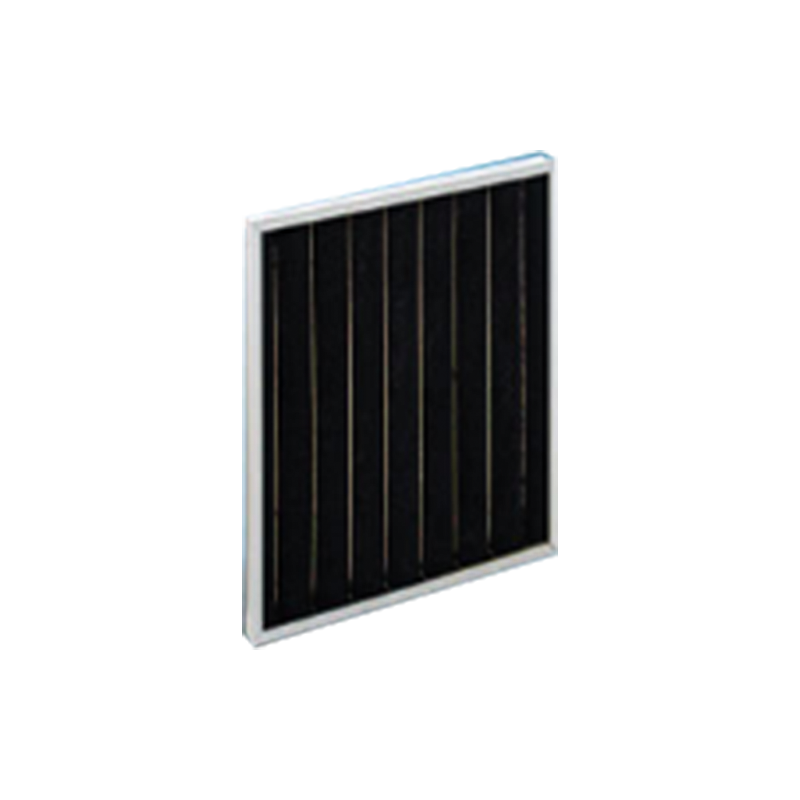

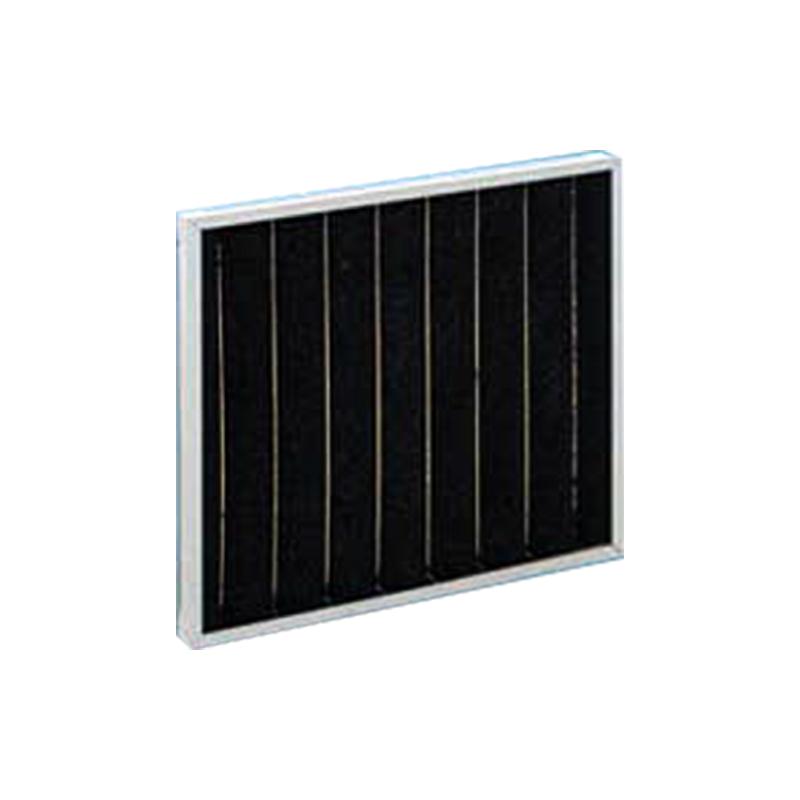

Activated Carbon Air Filter

Activated carbon air filter is a filtering device that uses activated carbon as the filter material. It not only has the function of filtering suspended solids with ordinary mechanical filters, but also can remove harmful substances such as gases and suspended particles that are difficult to remove from the air by conventional means, purify indoor air and improve air quality. The activated carbon filters we provide are all made of activated carbon materials that meet international standards, and can be customized according to customer requirements. They are mainly used for odor filtration.

Contact Us
PREV：Paper Frame Air FilterNEXT：Flat Type Primary Air Filter
Material selection

The outer frame is made of high-quality galvanized steel plate or aluminum profile, and the surface adsorption capacity of the filter material is strong, which can effectively remove odors. The material can be customized according to customer requirements.

Product features:
1. Low resistance and high air volume.
2. The product is easy to replace.
3. It is particularly effective in treating odors and air pollution in various air conditioning systems.
4. The activated carbon filter material used in this filter has strong surface adsorption capacity and can effectively remove odors.
5. Suitable for various air conditioning and ventilation systems. The air conditioning and ventilation system is particularly effective in dealing with odors and air pollution.


Model size and other parameters:

Model Dimensions(mm) Rated air flow(m³/h) Initial Resistance (Pa) efficiency
Z02-8 295×295×45mm
12"×12"×13/4"		 800m³/h 40pa ≥80%(Adsorption efficiency)
Z02-13 495×295×45mm
20"×12"×13/4"		 1300m³/h 40pa ≥80%(Adsorption efficiency)
Z02-22 495×495×45mm
20"×20"×13/4"		 2200m³/h 40pa ≥80%(Adsorption efficiency)
Z02-16 595×295×45mm
24"×12"×13/4”		 1600m³/h 40pa ≥80%(Adsorption efficiency)
Z02-27 595×495×45mm
24"×20"×13/4"		 2700m³/h 40pa ≥80%(Adsorption efficiency)
Z02-3 595×595×45mm
24"×24"×13/4"		 3200m³/h 40pa ≥80%(Adsorption efficiency)
