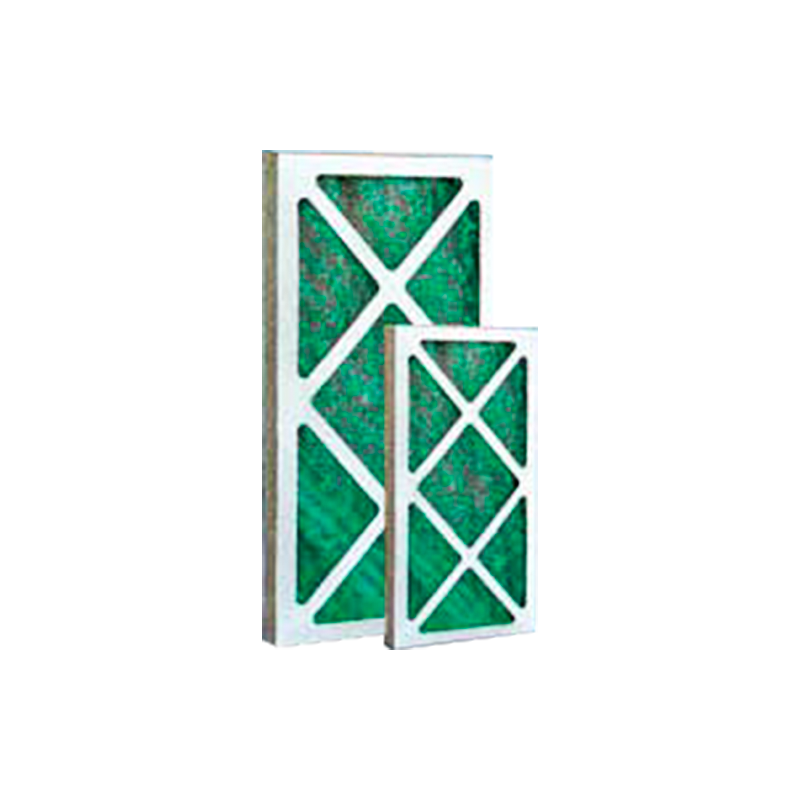

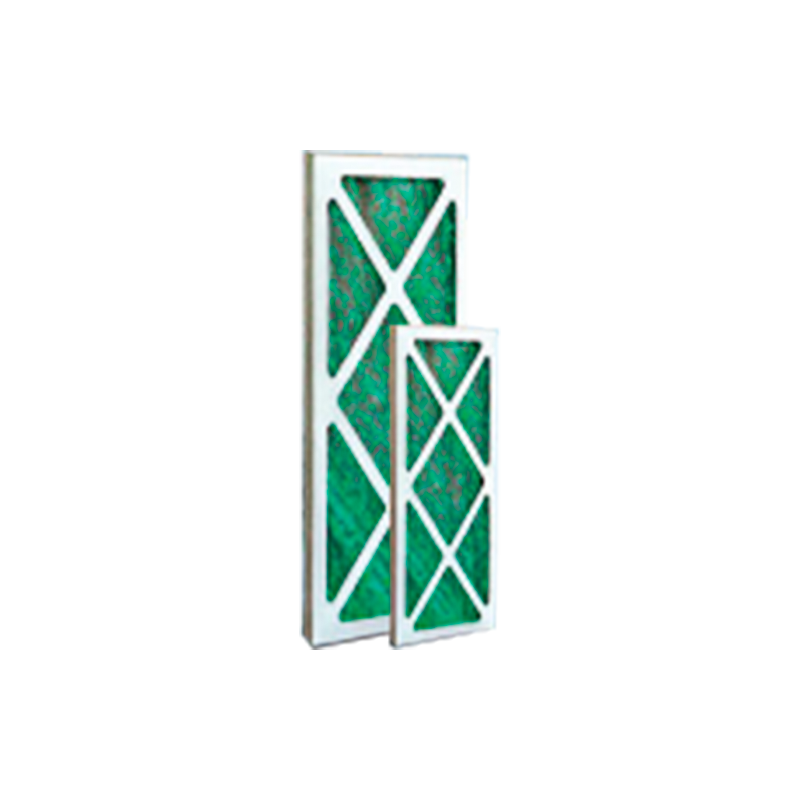

Paper Frame Air Filter

Our company specializes in selling paper frame air filters. The outer frame is made of high-quality pressure resistant paper, and the filter material of the paper frame air filter can be synthetic fiber or glass fiber. The material can be customized according to customer requirements. Disposable, do not rinse. Mainly used for primary filtration in central air conditioning.

PREV：Primary Metal Mesh Filter NEXT：Activated Carbon Air Filter

Material selection

The outer frame is made of high-quality pressure-resistant paper, and customized specifications can be selected according to customer requirements.

Product features:

1. Disposable, do not rinse.

2. Economical and easy to replace.

3. Suitable for pre-filtration of fresh air vents and primary filtration of air conditioning systems.

Model size and other parameters:

Model	Specifications	Rated air volume	Initial resistance	efficiency	level
ZG1-8Z	595×595×25mm	800 m³/h	24Pa	50% weight method	G1
ZG1-13Z	495×295×25mm	1300 m³/h
ZG1-22Z	495×495×25mm	2200 m³/h
ZG1-16Z	595×295×25mm	1600 m³/h
ZG1-27Z	595×495×25mm	2700 m³/h
ZG1-32Z	595×595×25mm	3200 m³/h
