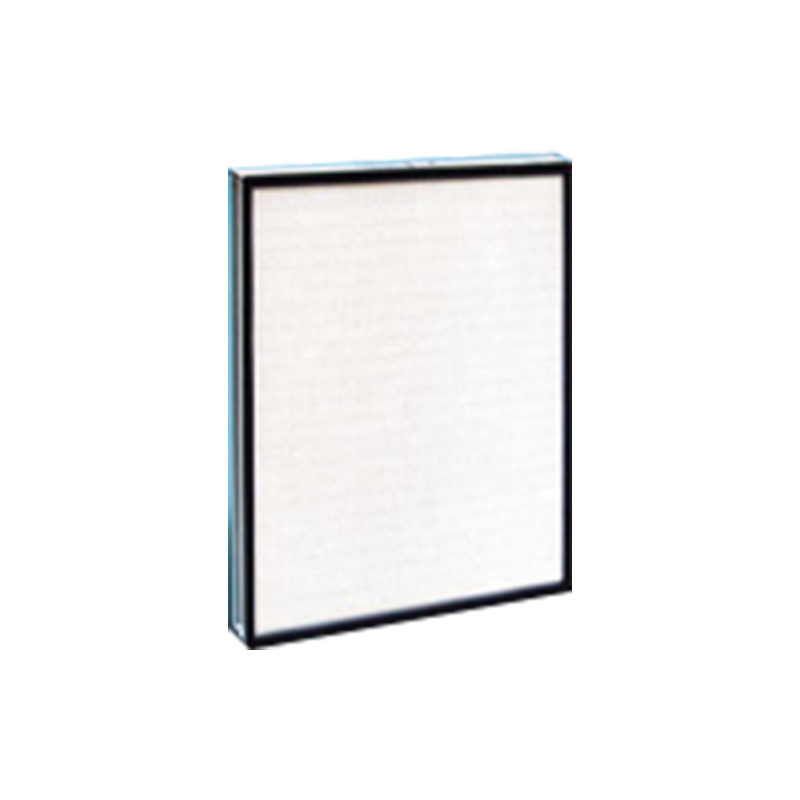

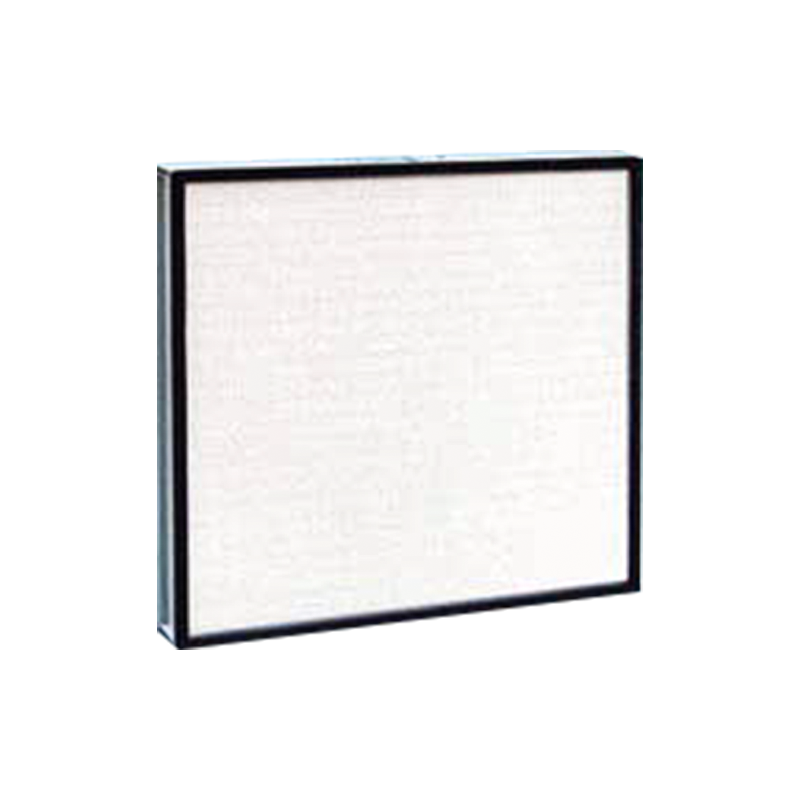

0.1um Ultra Efficient Non-Partition Air Filter

Our company specializes in selling ultra high efficiency non partitioned air filters, with high-quality aluminum profiles as the outer frame. The filtering material of the ultra high efficiency non partitioned air filters is imported glass fiber. The ultra high efficiency non partitioned air filters we provide are all produced using ultra high efficiency materials that meet international standards, and can be customized according to customer requirements. They are mainly suitable for ultra LSI manufacturing factories, semiconductor manufacturing factories, atomic force research centers, clean rooms, laminar flow equipment, workbenches and other occasions that require ultra-high cleanliness.

Contact Us
PREV：Ultra Low Resistance, No Partition, High-Efficiency Air FilterNEXT：Combination High-Efficiency Air Filter
Material selection

The outer frame is made of high-quality aluminum profiles, and the filter material is made of extremely fine glass fiber.

Product features:
1. Large dust holding capacity.
2. Low resistance, low pressure loss, thin thickness, and light weight.
3. The product is easy to install.
4. The capture efficiency of 0.1-0.2 um is above 99.9995%.
5. Suitable for ultra high cleanliness applications such as ultra LSI manufacturing factories, semiconductor manufacturing factories, atomic force research centers, clean rooms, laminar flow equipment, workbenches, etc.


Composition materials and operating conditions：

Frame material Aluminum profiles
Seals Polyurethane glue
Separators Hot melt adhesives
Filter media Fiberglass filter paper
Use the highest temperature 80℃
Use the highest humidity 100%
Seals Ethyl acetate


Model size and other parameters:

Model Dimensions
(mm)		 Rated air volume
(m³/h)		 Dust holding capacity
(g)		 Surface wind speed
(m/s)		 Initial Resistance
(Pa)		 Final Resistance
(Pa)		 Efficiency
(0.3μm)		 Weight
(Kg)
ZWG-4.7SA-E 610×610×50 470  450  0.35  ≤170 400  ≥99.9995 ≈3
ZWG-7SA-E 915×610×50 700  700  0.35  ≤170 400  ≥99.9995 ≈4.5
ZWG-6MA-E 610×610×69 600  650  0.45  ≤170 400  ≥99.9995 ≈3.8
ZWG-9MA-E 915×610×69 900  950  0.45  ≤170 400  ≥99.9995 ≈6
ZWG-8LA-E 610×610×90 800  800  0.6  ≤170 400  ≥99.9995 ≈5
ZWG-12LA-E 915×610×90 1200  1200  0.6  ≤170 400  ≥99.9995 ≈7.5
ZWG-16LA-E 1220×610×90 1600  1600  0.6  ≤170 400  ≥99.9995 ≈10
ZWG-16YA-E 1200×610×100* 1600  1600  0.6  ≤170 400  ≥99.9995 ≈11

*Depth 100 is the liquid tank sealing filter
