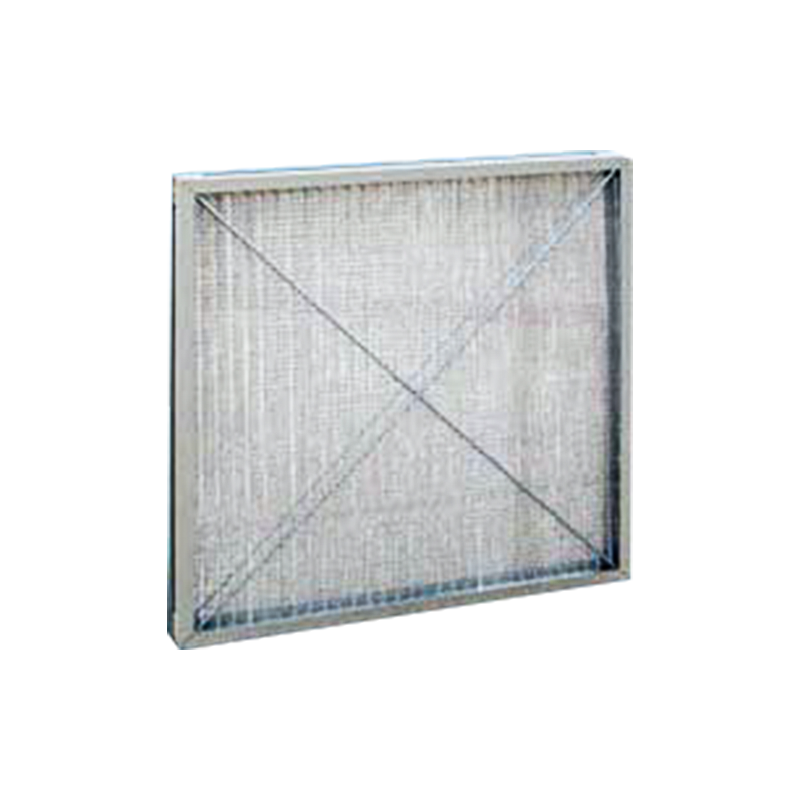

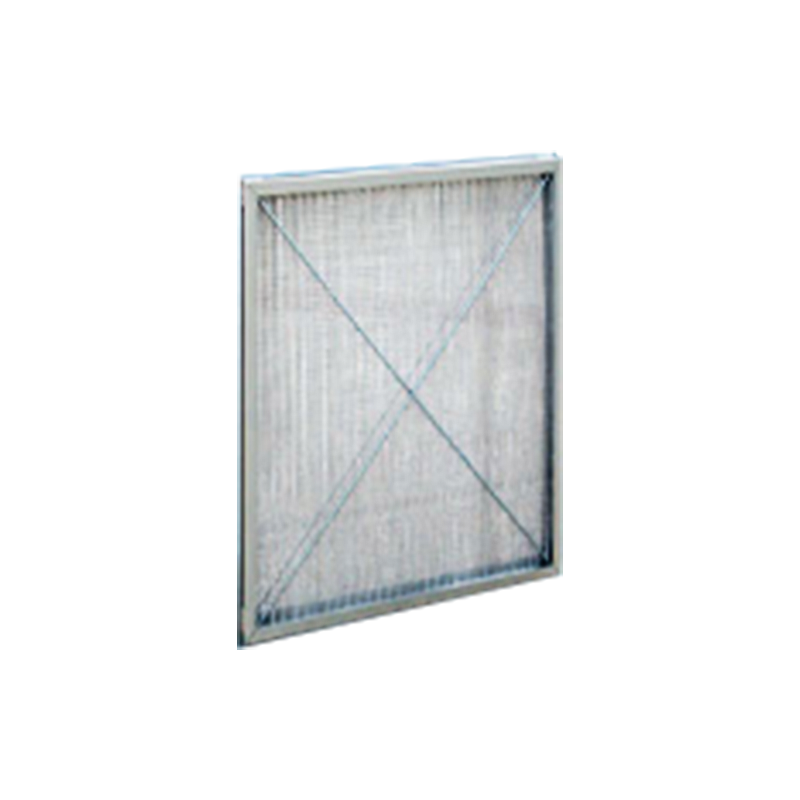

Primary Metal Mesh Filter

Our company specializes in selling primary metal mesh filters, with high-quality galvanized steel plates or aluminum profiles for the outer frame. The wire mesh of the primary metal mesh filter can be made into aluminum mesh or metal mesh, and customized specifications can be selected according to customer requirements. His advantage lies in durability and the ability to be reused multiple times. Mainly used for primary filtration in central air conditioning.

PREV：No previous product NEXT：Paper Frame Air Filter

Material selection

The outer frame is made of high-quality galvanized steel plate or aluminum profile, and customized specifications can be selected according to customer requirements.

Product features:
1. Reusable for cleaning and high economic efficiency.
2. Generally used in the primary filtration system of central air conditioning.
3. Suitable for ventilation filtration with special acid resistance.
4. Long service life and low resistance.
5. Mainly filters large particles of dust, leaves, and other debris.

Model size and other parameters:

Model	Dimensions(mm)	Rated air flow(m³/h)	Initial Resistance (Pa)
ZJ01-1	595×29h×45mm 24”×12”×13/4”	1600m³/h	≤10pa
ZJ01-2	495×495×45mm 20”×20”×13/4”	2200m³/h	≤10pa
ZJ01-3	595×595×45mm 24”×24”×13/4”	3200m³/h	≤10pa
