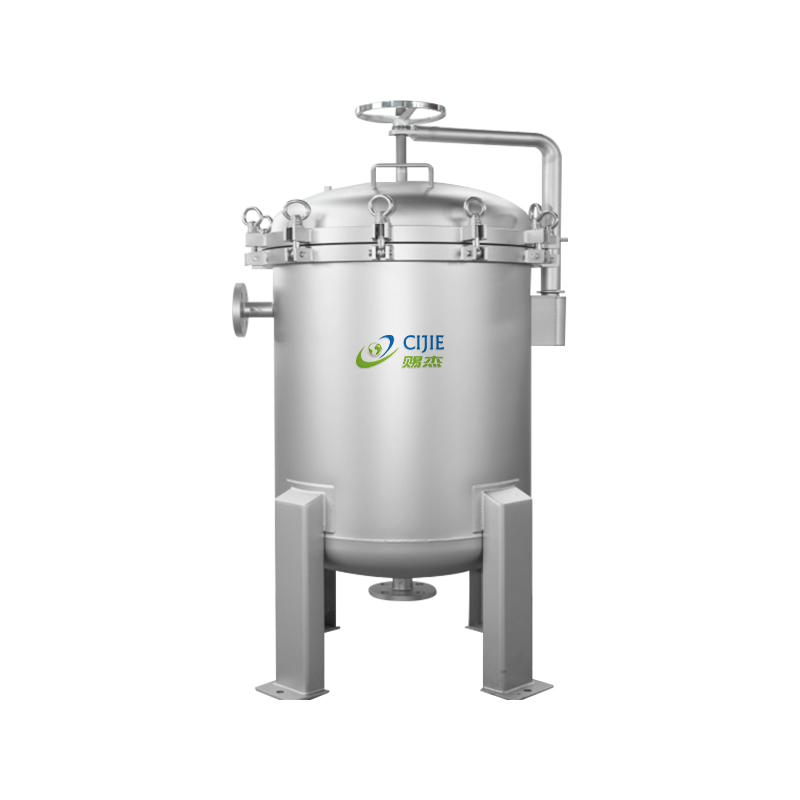

CJMF-O Ordinary Multi-Bag Filter

The ordinary multi-bag filter (CJMF-O) adopts a hanging ear bolt locking structure, which is economical and can be used in high-pressure situations. The filtration accuracy ranges from 1um to 1000um, and the number of filter bags can be combined from 2 to 36 bags. The flow rate can range from 50m ³/h to 1000m ³/h.

The material can be carbon steel SS304、SS316、2205、HC276、 Lined with PTFE and other materials. Can meet the filtration needs of various corrosive liquids.

PREV：CJMF-K Quick Opening Multi-Bag Filter NEXT：PP Single Bag and Multi-Bag Filter

Dimension

Product Features

Product Features

● Adopting a clamp screw form for sealing, making it easy and fast to open or close the top cover, the entire process only takes 30 seconds;

● Using a spring-assisted weight balancing mechanism, the top cover is as light as nothing, and can be opened or closed with just a gentle push by hand;

● The design of side in and bottom out ensures that the liquid can be completely discharged.

Application Scope

● Applicable industries: petrochemicals, fine chemicals, water treatment, pharmaceuticals, automotive coatings, food and beverage, new energy manufacturing, coatings, electronics, etc;

● Suitable for liquid filtration, it can remove mechanical impurities from various liquids;

● Suitable for occasions where filter bags are frequently replaced.
